Maintenance – Replace Treadle Hinge

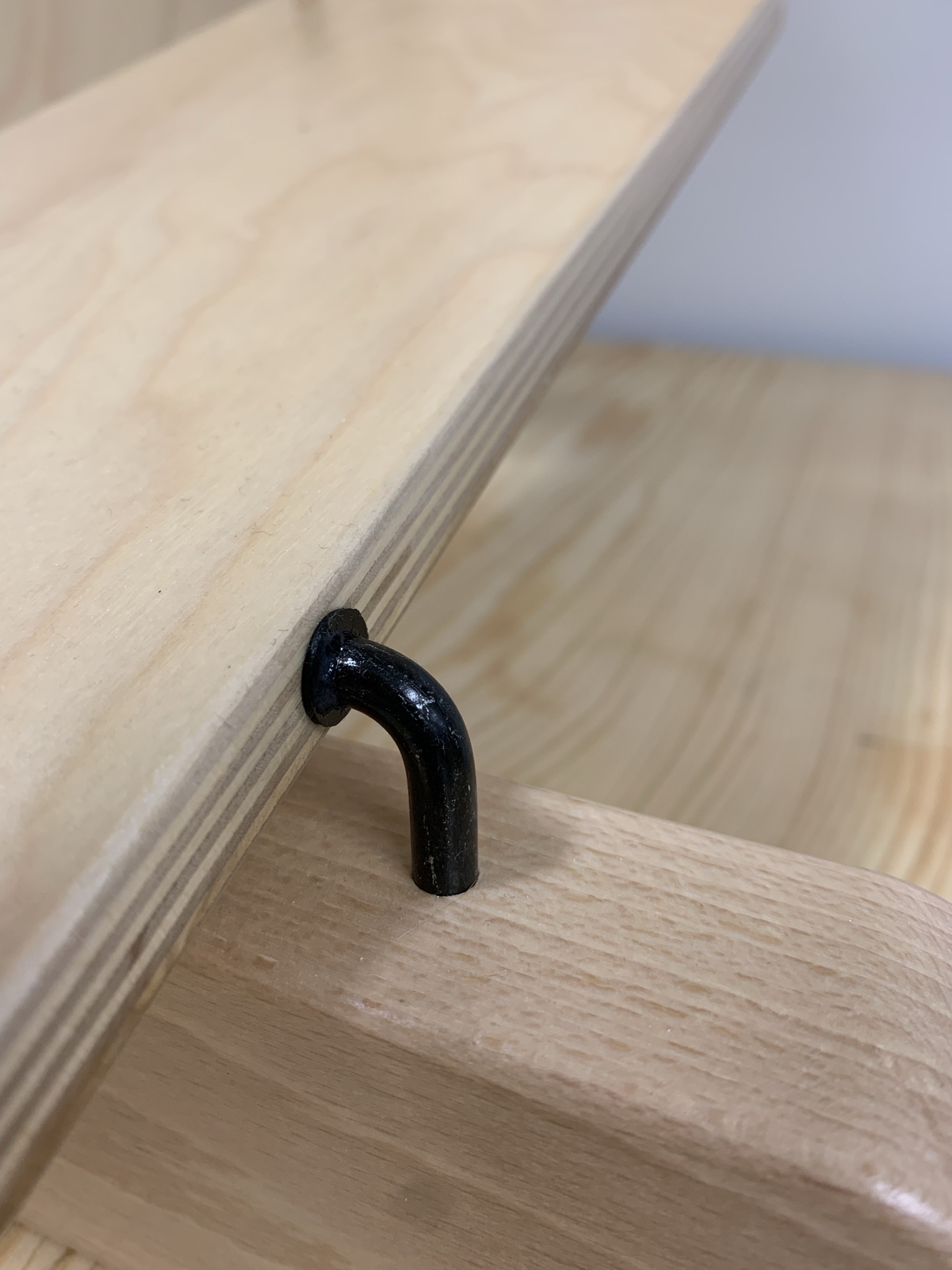

Treadle hinges are inserted into the sides of the treadle and they can turn in the nylon bearings, pressed into the slanted uprights.  They are stainless steel 6 mm axles, in an "L" shape.

If you need to replace them, they are a very tight fit - but try to pry them up, left and right side, simultaneously

Partnumbers

SR0111  - Treadle hinges (per 2 )

SR0149 - Nylon bearings (per 2 )
