Unstable backpost
The Victoria is unique in the way it folds with a pull pin and click locking system. However, there is a way to fine tune how snug that pull pin system operates. If it is too loose, the backpost will wobble and cause a spinner frustration.
Eccentric Washer
In the case of the Victoria, we have added a firm foam washer that is screwed into the wheel base. (Part number SR0181) The shape is slightly oval and the screw position is off center to allow adjustment of its position.
How it works

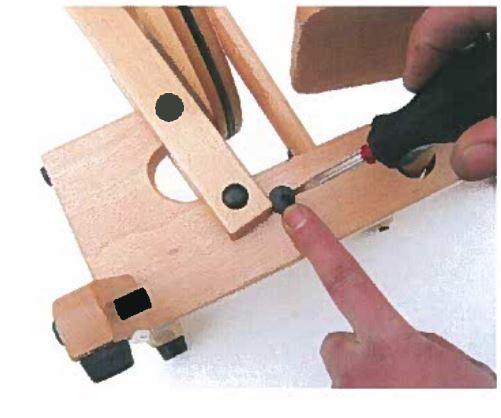

The eccentric washer is found at the base of the Victoria upright and can be rotated to take up any slack or rocking of the back post once the back post is locked in the upright position. The hard foam washer is an oval shape, not round, thus its positioning makes a difference in how the Victoria locks. Just hold the wheels back post unlocked, loosen the screw fastening the eccentric washer, rotate the washer so more of the "meat" of the washer takes up the excess space. Tighten washer and return back post to locked position. Repeat until you are satisfied the "slack" has been removed.
See also attachment
