Hollandia - height harnesses and lams measuring stick

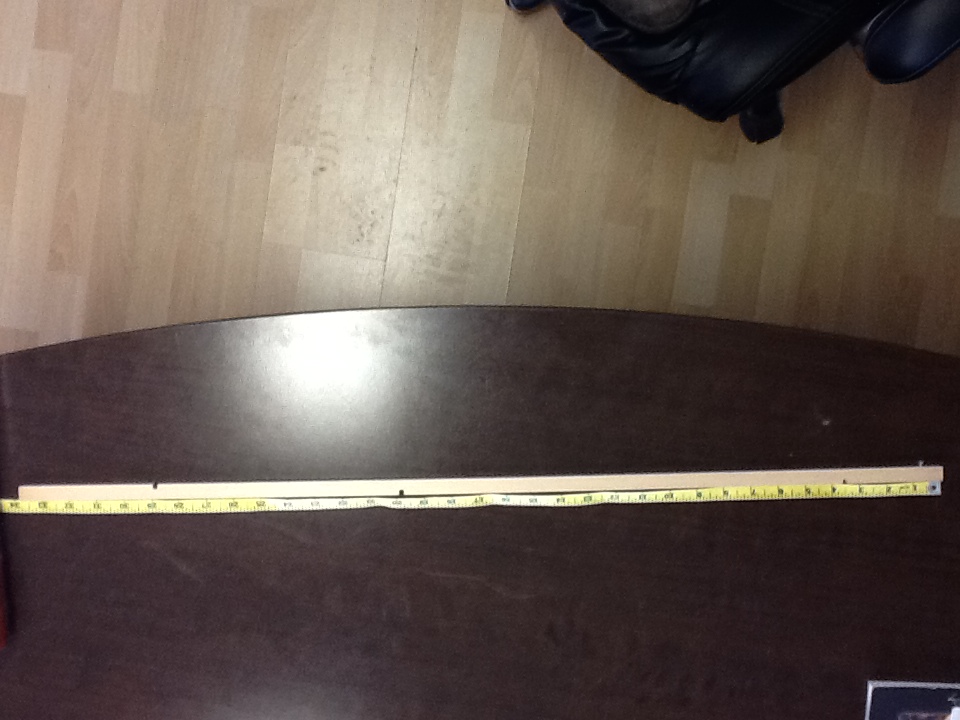

The Hollandia measuring stick is used to align harnesses and lamms at the correct height for the Hollandia loom.   It was shipped with the Hollandia loom years ago..   Using this information you can make your own.

When the blocking pin is in at the top of the loom these are the measurements of the harnesses and lamms.   Here are the measurements from the floor up.

• Bottom of lower lamm 16 1/4"
• Bottom of upper lamm 24 1/2"
• Bottom of lower harness bar 27"
• Bottom of upper harness bar 40 3/4"

The total length texsolv cord needed for a Hollandia 130-4 is 27 meter.

Per cord (per harness)  it is 6,64 meter

Treadle tie up cord lengths are 38.5 cm and 60 cm
