The original Spring was introduced to the market in the eighties and has undergone only minor improvements over the years. The new Spring 2 was launched in 2020, replacing the original Spring in our product line. Accessories and spare parts for the Spring 1 remain available.

Below is a summary of features and specifications.

	Spring 1 - 90-8	Spring 1 - 90-12	Spring 2 - 110-8	Spring 2 - 110-12
Type of loom	parallel countermarche - with treadles
Shafts	8 shafts	12 shafts	8 shafts	12 shafts
Treadles*	10 treadles	14 treadles	10 treadles	14 treadles
Dimensions WxDxH	120x94x115cm (46"x37"x45 1/4")	120x94x115cm (46"x37"x45 1/4")	140 x 94 x 115cm (53"x37"x45 1/4")	140x94x115cm (53′′ x 37′′ x 45 1/4′′)
Depth when back beam is folded	72 cm (29′′)
Breast beam height	78 cm (30 1/2")
Weight	43kg (95 lb),	48,5kg (107lb)	50kg (110lb),	55,5kg (122lb)
Accessories included with loom
Heddles WA0217 in bundles of 50 heddles (light blue tie)	800 heddles	1200 heddles	800 heddles	1200 heddles
Reed	Metric reed 40/10 (4/cm 10dpi)- approx 10 dent - 12 cm (4.75”) reed height (outer dimension)
Treadle Tie-Up Texsolv cords* Long 21" Short 13,5"	60 short 60 long	90 short 90 long	60 short 60 long	90 short 90 long
Various rods/sticks	2 Apron rods, 2 lease sticks, 16 warp sticks

Optional accessories	Part Number
Heddles	Texsolv heddles 392 mm (light blue ties) - 50 heddles per bundle - WA0217
Reed	Metric reeds are available from Louet BV in 10 cm increments starting at 20-10 through 100-10. Imperial reeds are available in North America only - 6, 8, 10, 12 and 15 dent. Reeds are 12 cm (4.75”) in height
4 shaft extension set includes treadles and 30 of each long and short tie-up cords, but does not include extra heddles	WA0118		WA0122
Extra treadles (2 pack)	WA0321		WA0415
2nd warpbeam and backbeam	90-WA0119	90 - WA0119	110 - WA0123	110 - WA0123
Sectional warp kit includes 4 wooden slats and metal separator clips. Available in metric 2cm sections or Imperial 1” sections	2cm 90 -WA0120 1" 90 - WA0121	2cm 90 - WA0120 1" 90 - WA0121	2cm 110-WA0124 1" 110-WA0125	2cm 110-WA0124 1" 110-WA0125
Bench for Spring/David/Jane	WA0103
Fly Shuttle device - does not include shuttles or pins	WA0137

*Treadles

The treadles for the Spring are 3cm (1.25”) wide with 3.5cm (1.5”) between the treadles.
The treadles hinge on the foot rail at the front of the loom.
With normal tie up of the countermarch system you can only depress 1 treadle at a time.

Heights of horizontal lamm and harness, measured from the floor up

When measuring, the shafts are blocked with the blocking pin in place.
All measurements are measured from the floor to the top of the harness or lamm bar.

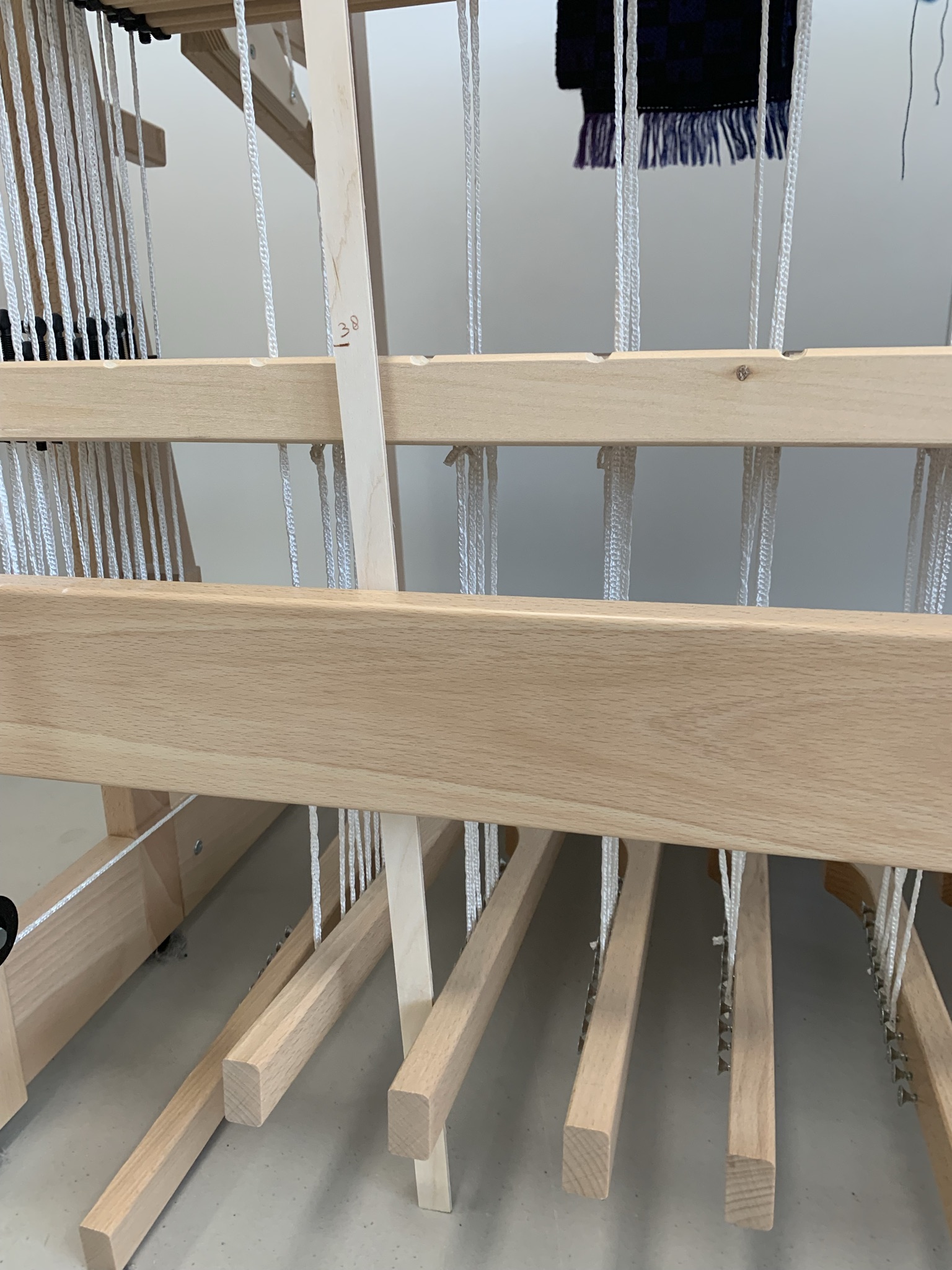

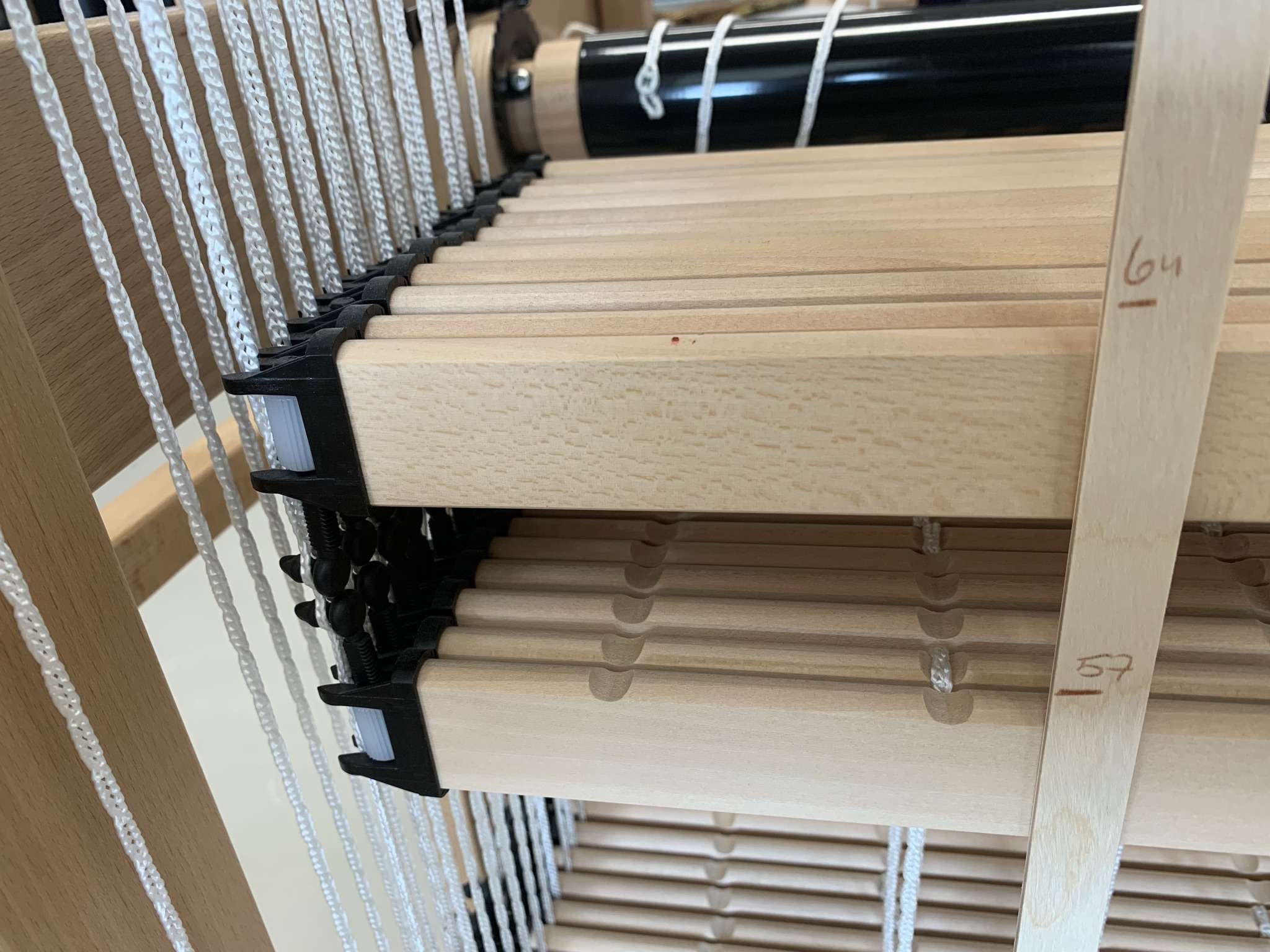

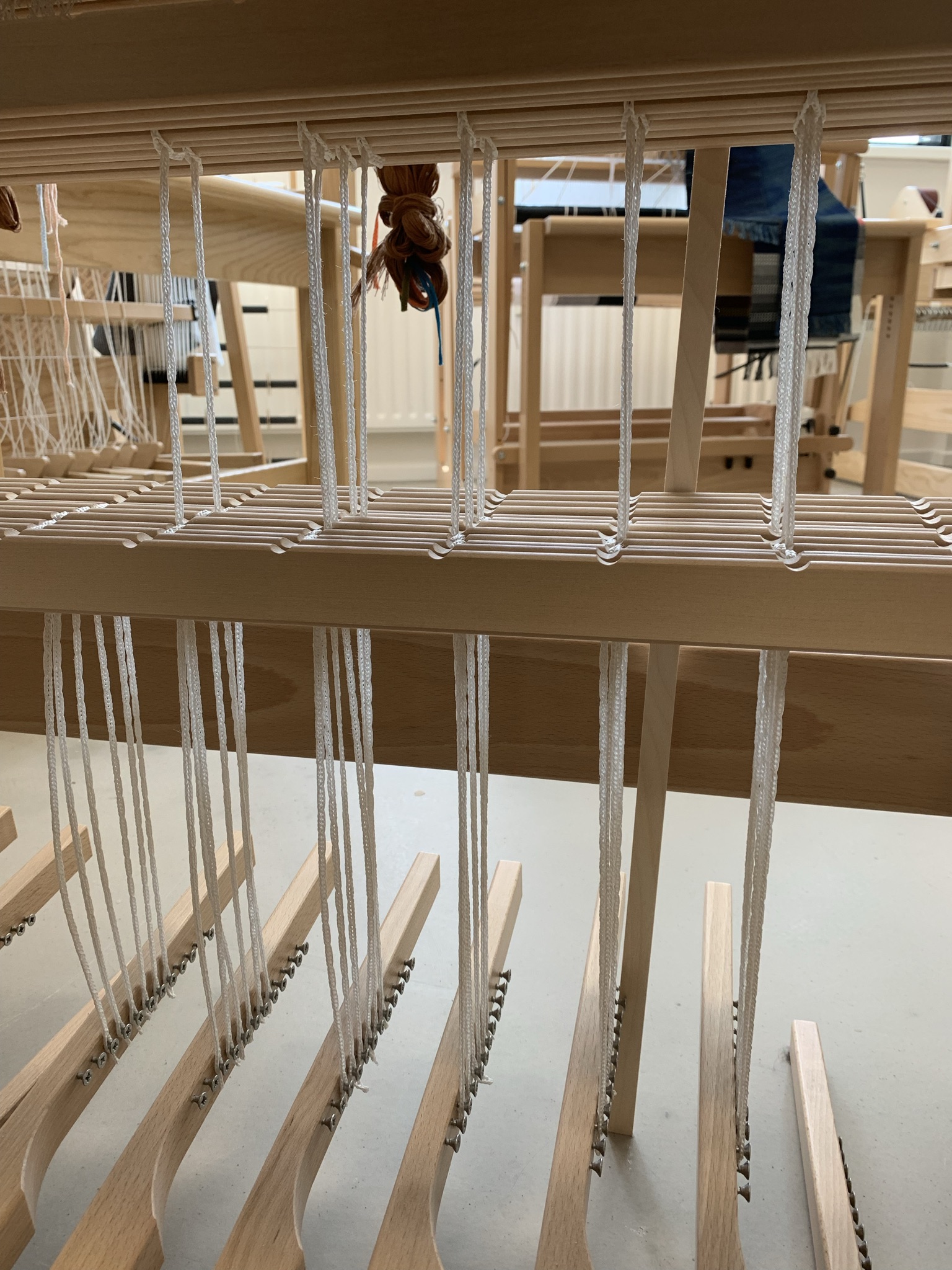

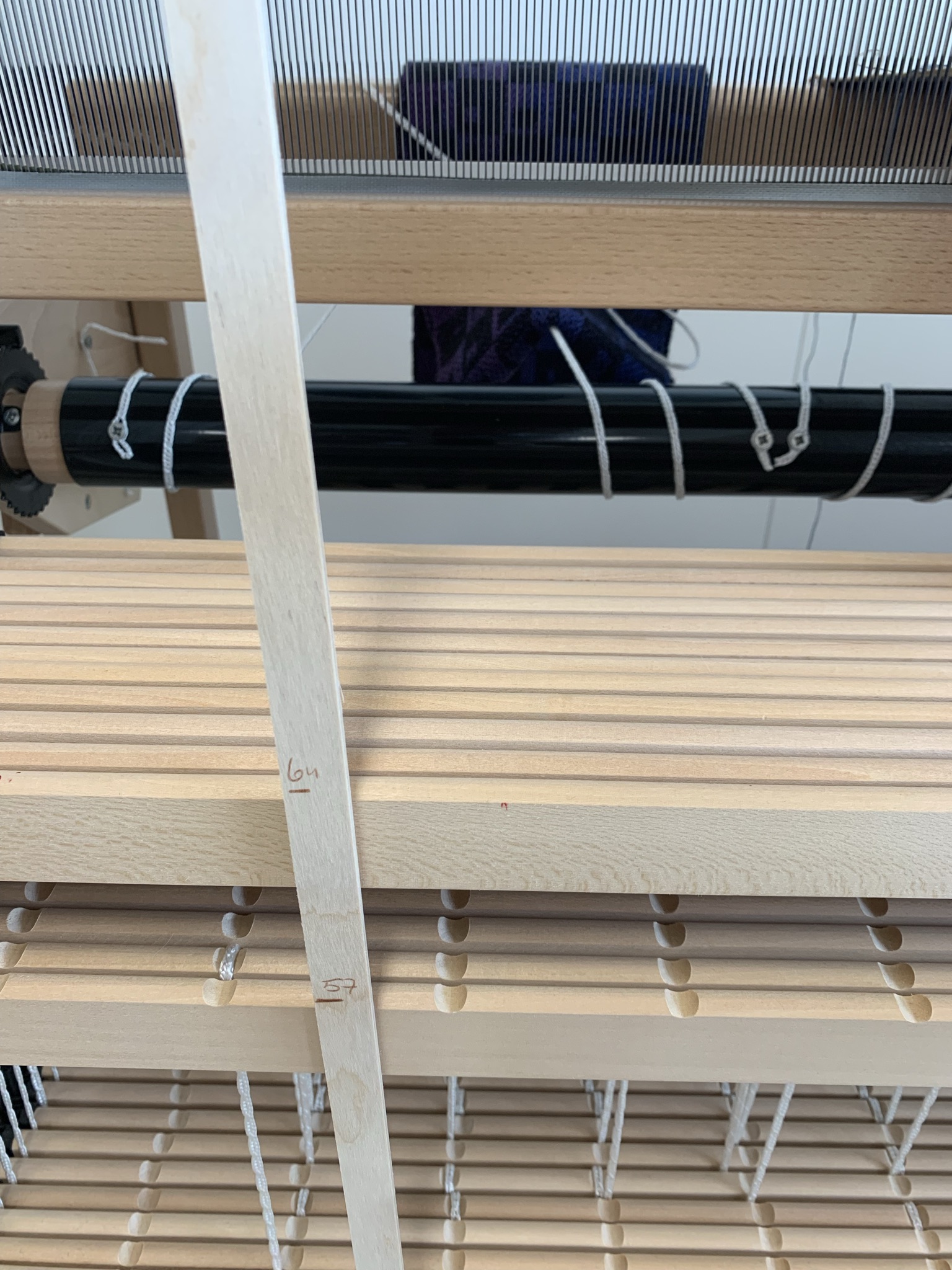

Tip: Mark the measurements on two warp sticks and place them upright behind the last shaft. Then you can easily adjust the height by turning the white nylon nut. The distance of the holes in the texsolv cord is 12 mm (0.5"). The white nylon nuts allow you to fine-tune the heights.

Lams

Upper lam 57 cm (22 7/16")

Lower lam 38 cm (15")

Shaft bars

With the warp tensioned and tied, the warp threads should run through the center of the heddle eye

Lower shaft bar 64 cm (25 3/16")

Upper shaft bar 98 cm (38 9/16")

Tie-up cords

Tie-up cords Upper lamms are 54,5 cm (21,5 ") long

Tie-up cords Lower lamms are 34,5 cm (13 1/2" long.
