Spinning Wheel - Bobbin Bearings

What is a Bobbin Bearing

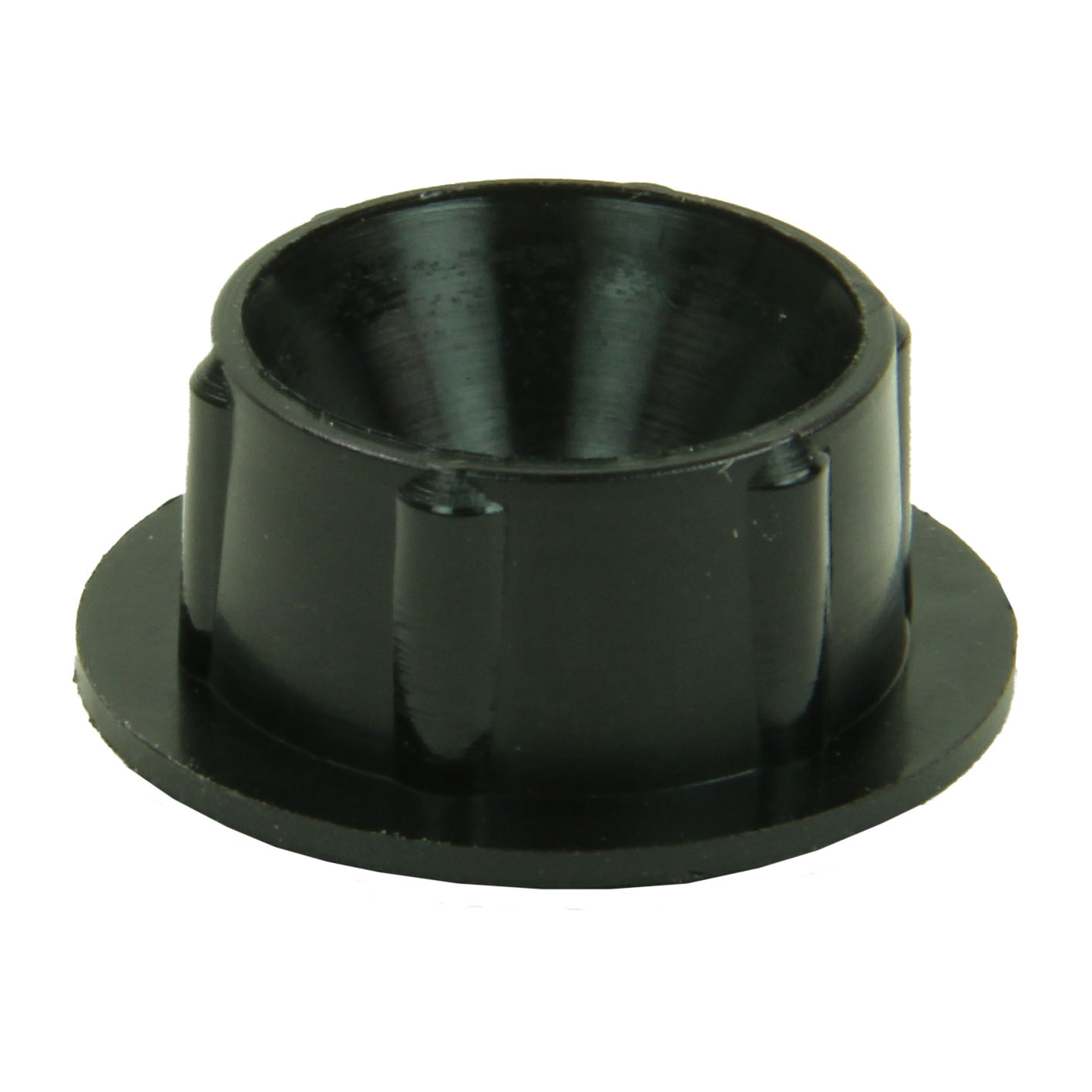

Louet bobbins have a large center core.  In order to allow the bobbin to rotate smoothly on a flyer shaft, we use a molded plastic bearing called a "Bobbin Bearing". Bobbin bearings for Louet wheels are either 6mm or 8mm.

This refers to the diameter or thickness of the flyer shaft which fits properly through the bobbin bearing.

Bobbin bearings have shallow ridges on the inside in order to grip the bobbins core in a tapered compression fit. Despite this, sometimes bobbin bearings come loose or fall out.  You can put  a bobbin bearing back onto the center core by tapping the bobbin bearing into place using a rubber mallet.

Ordering new bobbin bearings

Some customers may find that their bobbin bearings become loose over time. If this happens, they can be lost.

Replacement bobbin bearings can be ordered from any Louët retailer.

• 6 mm bobbin bearings – part #SR0128
  Used on all Irish tension (IrT) wheels:
  S10, S15, S17, S20, S50, S60, S70, S71, S75, S76, S77, S90
• 8 mm bobbin bearings – part #SR0129
  Used on all Scotch tension (ScT) wheels:
  S10C, Julia, Victoria

Explanation:

IrT (Irish tension)
A system in which the braking is controlled by a brake band acting on the flyer.

ScT (Scotch tension)
A system in which the braking is controlled by a tension band acting on the bobbin.
